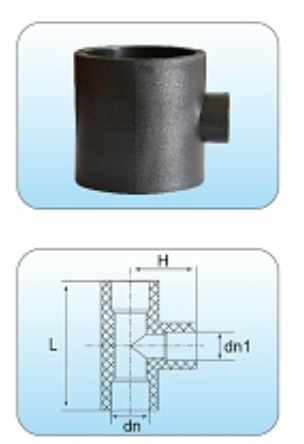

| 承插異徑三通 | |||||
| size | dn | dn1 | L | H | SDR |
| T25-20 | 25 | 20 | 60 | 34 | 11 |
| T32-20 | 32 | 20 | 65 | 40 | 11 |
| T32-25 | 32 | 25 | 65 | 40 | 11 |
| T40-20 | 40 | 20 | 60 | 45 | 11 |
| T40-25 | 40 | 25 | 66 | 45 | 11 |
| T40-32 | 40 | 32 | 77 | 45 | 11 |
| T50-20 | 50 | 20 | 73 | 55 | 11 |
| T50-25 | 50 | 25 | 76 | 55 | 11 |
| T50-32 | 50 | 32 | 83 | 55 | 11 |
| T50-40 | 50 | 40 | 93 | 55 | 11 |
| T63-20 | 63 | 20 | 85 | 49 | 11 |
| T63-25 | 63 | 25 | 85 | 49 | 11 |
| T63-32 | 63 | 32 | 93 | 52 | 11 |
| T63-40 | 63 | 40 | 93 | 56 | 11 |
| T63-50 | 63 | 50 | 109 | 58 | 11 |
| T75-32 | 75 | 32 | 92 | 54 | 11 |
| T75-40 | 75 | 40 | 110 | 62 | 11 |
| T75-50 | 75 | 50 | 116 | 62 | 11 |
| T75-63 | 75 | 63 | 129 | 67 | 11 |
| T90-50 | 90 | 50 | 155 | 71 | 11 |
| T90-63 | 90 | 63 | 155 | 71 | 11 |
| T90-75 | 90 | 75 | 155 | 75 | 11 |
| T110-40 | 110 | 40 | 142 | 78 | 11 |
| T110-50 | 110 | 50 | 142 | 78 | 11 |
| T110-63 | 110 | 63 | 142 | 90 | 11 |
| T110-75 | 110 | 75 | 185 | 90 | 11 |
| T110-90 | 110 | 90 | 185 | 90 | 11 |
